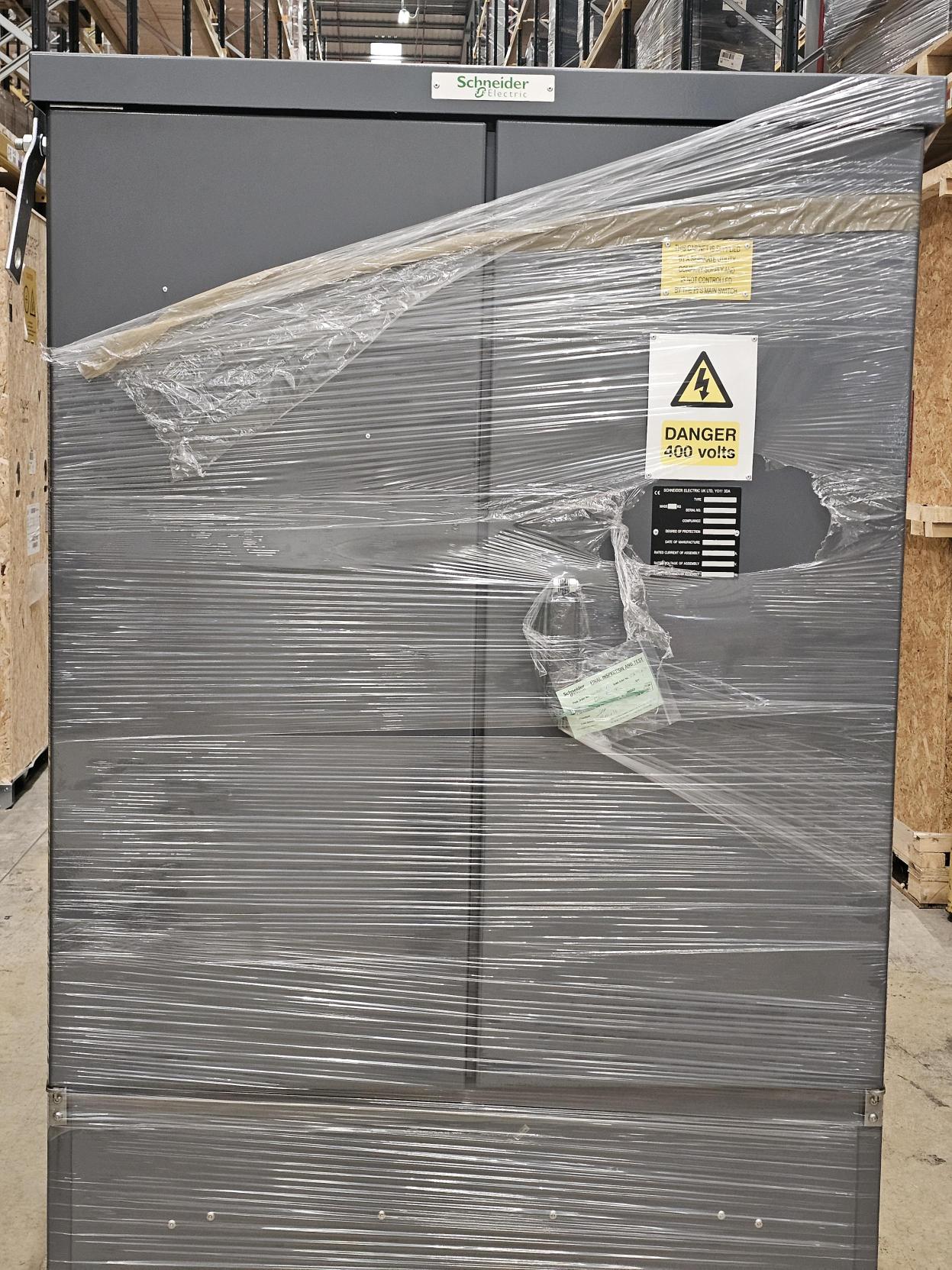

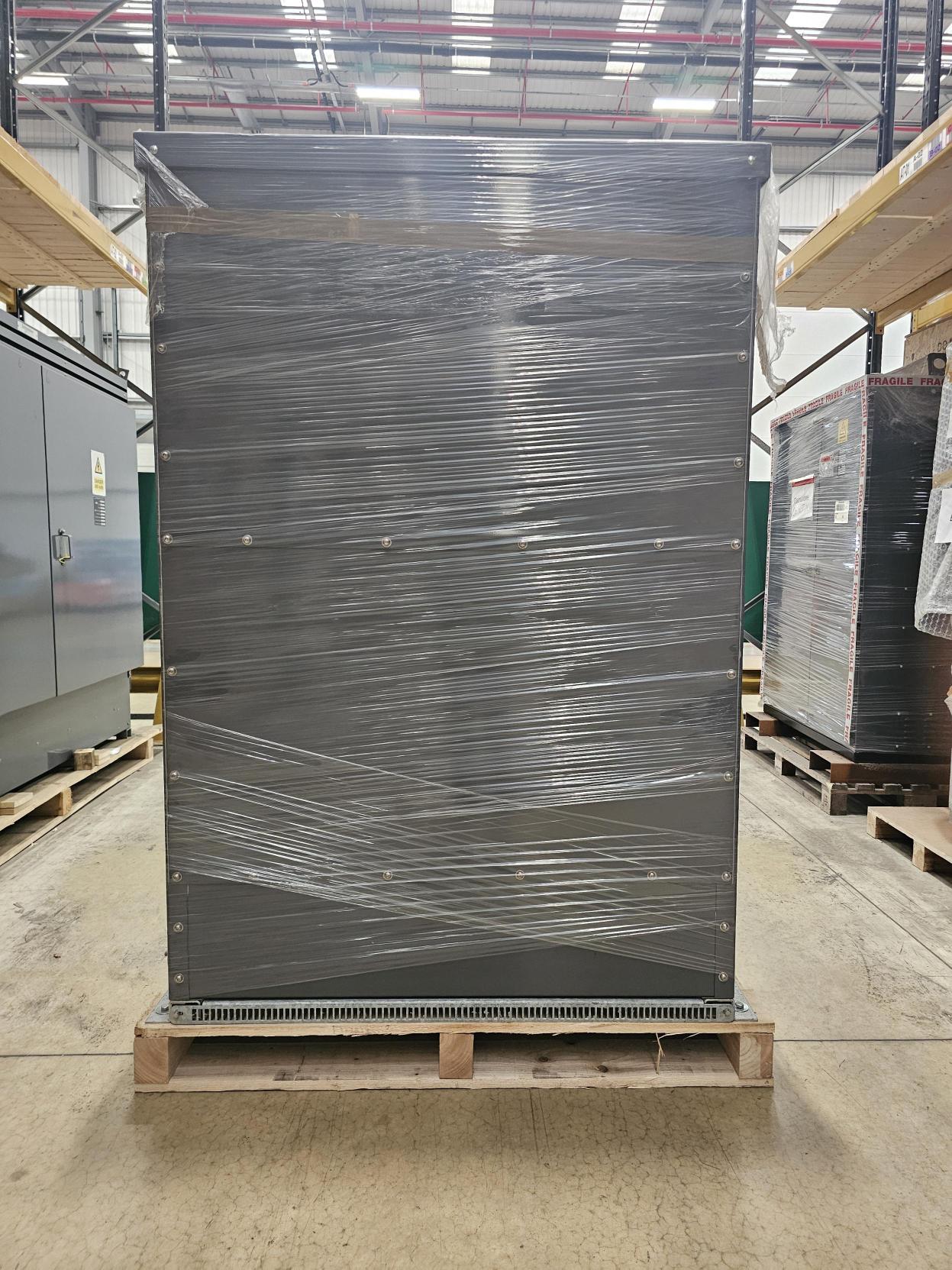

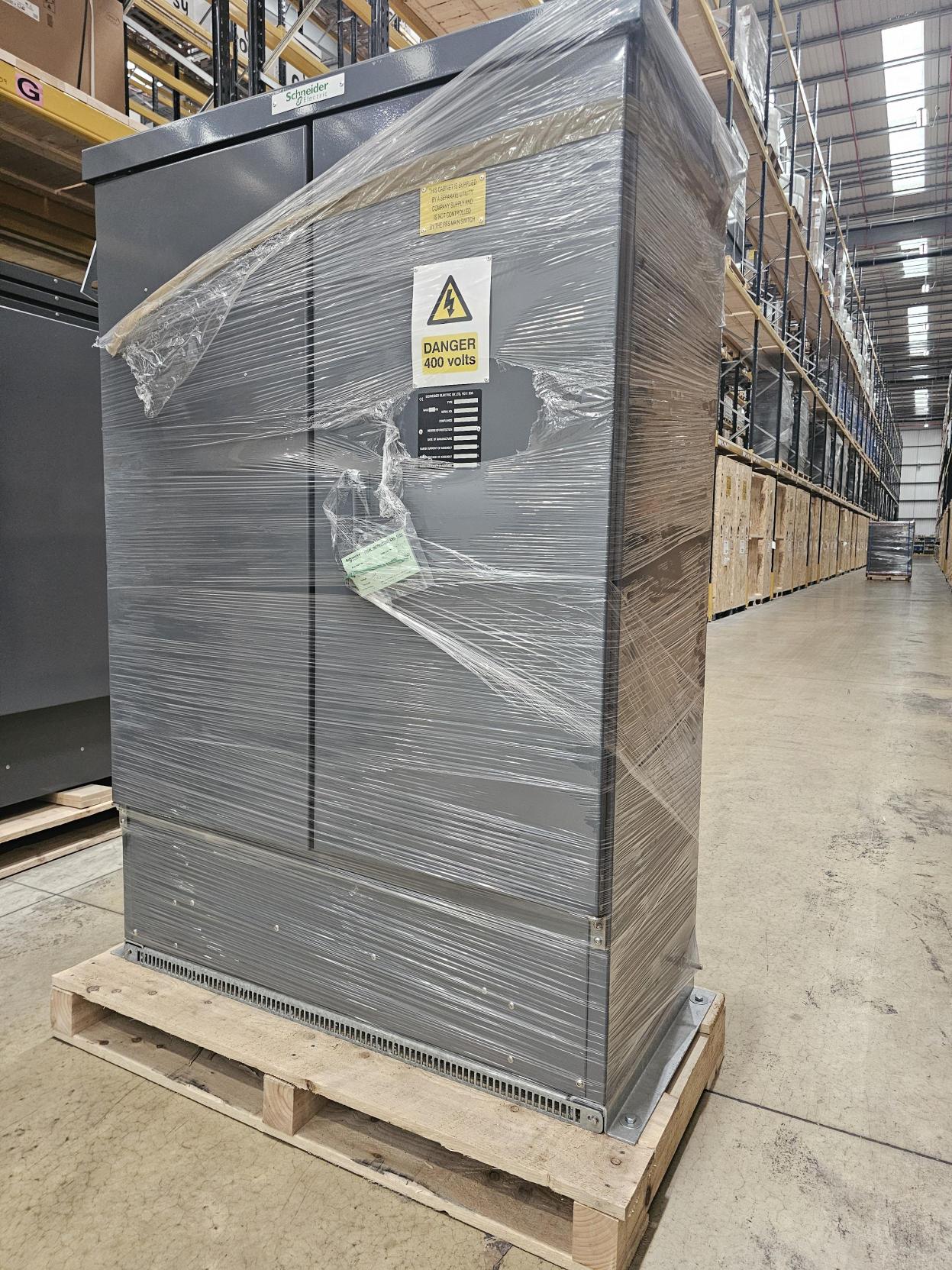

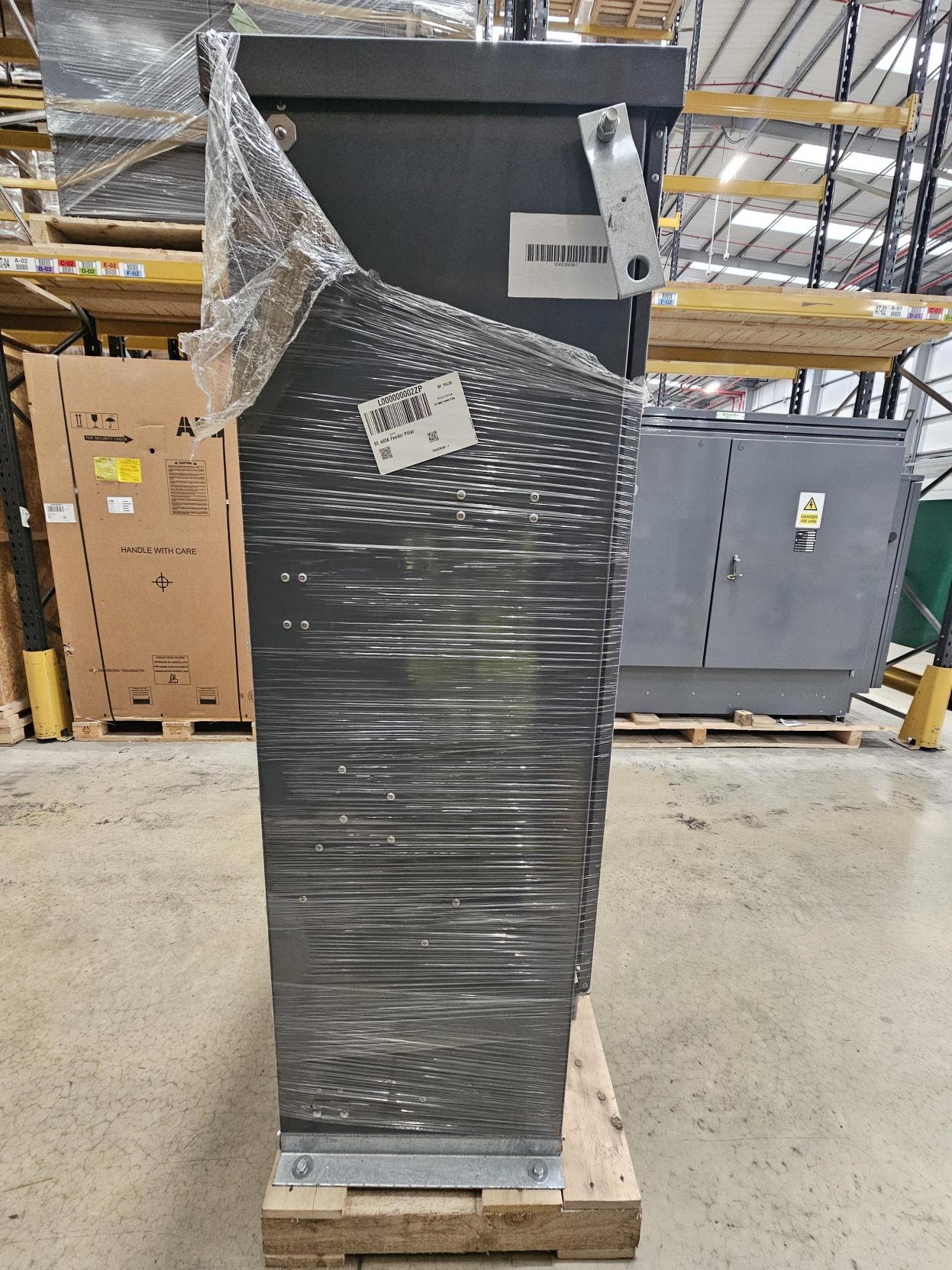

Lot-2040 400A EV Feeder Pillar Schneider Electric (11 units)

pattern: feeder pillar

product offer: Schneider Electric NS MCCB

basis of specification: IEC 61439-7

short circuit rating: 36kA as limited by the upstream 400A

fuses (incoming switch disconnector will open in the event

a prospective short circuit current up to 36kA rms.)

mechanical strength: In accordance with IEC61439-7

ambient temperature limits: 35⁰C Daily average, 40⁰C

maximum

fire rating: glow wire test in accordance with IEC61439-7

housing

material: fabricated from 2.5mm pre-galvanised mild steel

finish: painted, dark grey 632 of BS381C

location: outdoor

degree of protection: external IP 54, doors open IP XXB

of IEC60529 with doors open and all screens in place

mounting: ground

connection: cable

locking: dual padlock, provision only

external fixings: stainless steel, backplate secured with

button-head screws

document pocket: yes, with electric shock warning label

plinth covers: yes

ratings

phase busbar: 400A

neutral busbar: 400A

earth bars: 50x3mm

busbar material: electro-plated HDHCCu

neutral-earth link: neutral earth link within cut-out

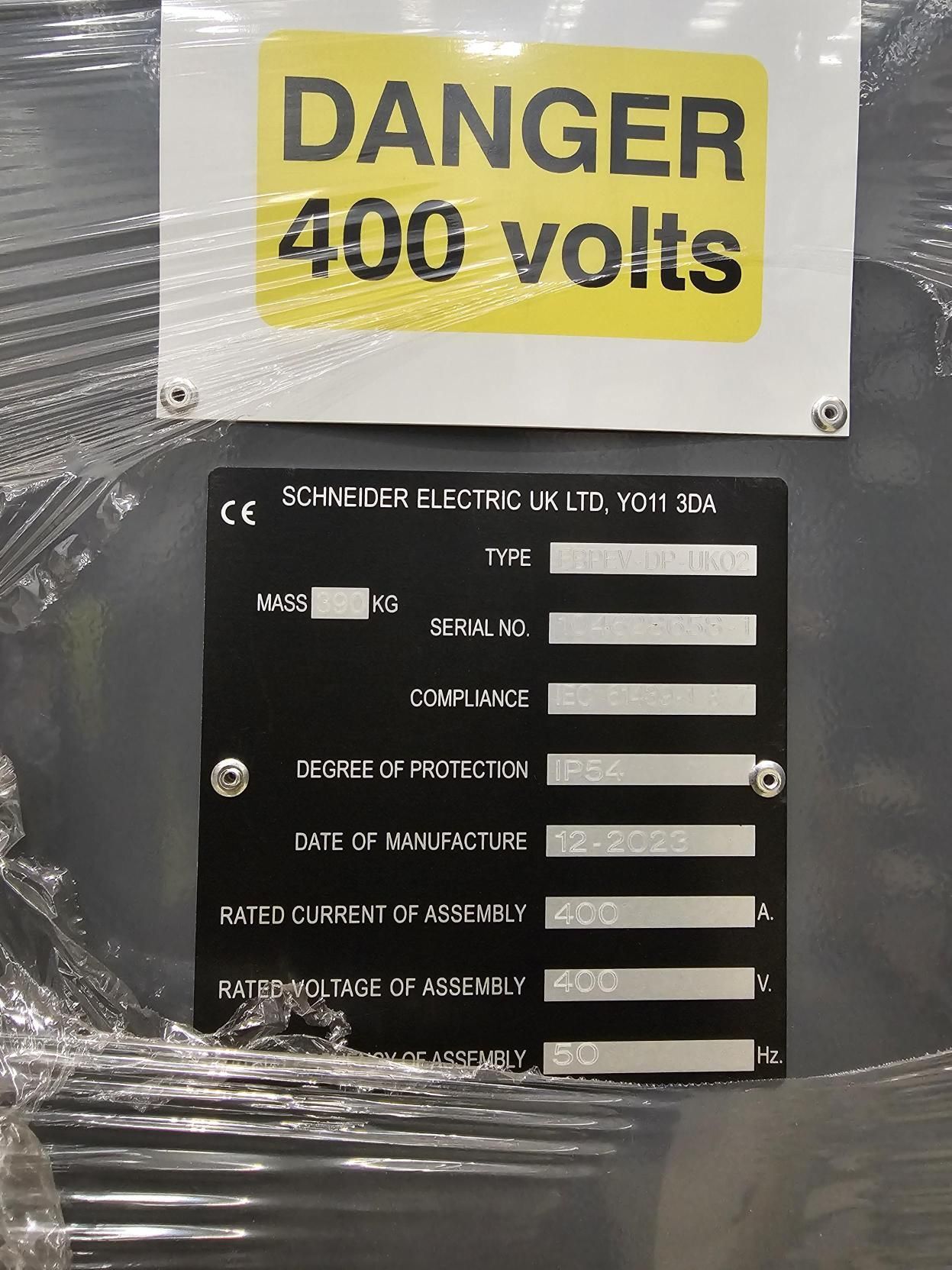

working voltage: 400V AC, 3 phase, 4 wire, 50Hz

earthing system: TT Earthing

Weight: 390kg per unit.

Load-out: Location will load assets onto buyer's transportation vehicle(s) free of charge.

Please NOTE: the above listed quantities are believed to be an accurate representation of the available assets. It is the Buyer's responsibility to verify quantities at the time of pick up. No adjustments will be made for discrepancies within +/- 5% of the listed quantities. Any adjustments will need to be presented in writing to Requis on or before loadout. Please bid accordingly.

Buyer Premium: a 10% buyer premium will be added to bid amount and applied to final invoice. Please bid accordingly.

Conditions of Sale Agreement will be provided to the winning Buyer. The agreement must be signed by Buyer prior to release of assets.
